Windshield Wiper Arm And Blade Removal/Installation: Notes

Remove in the order indicated in the table.

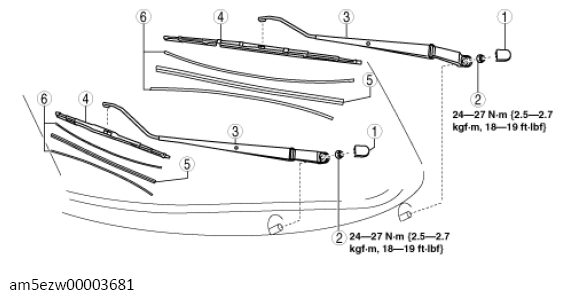

Fig 1: Windshield Wiper Arm And Blade Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Cap
2	Nut
3	Windshield wiper arm (See WINDSHIELD WIPER ARM INSTALLATION NOTE .)
4	Windshield wiper blade
5	Rubber brush
6	Backing plate

Install in the reverse order of removal.
Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .)
