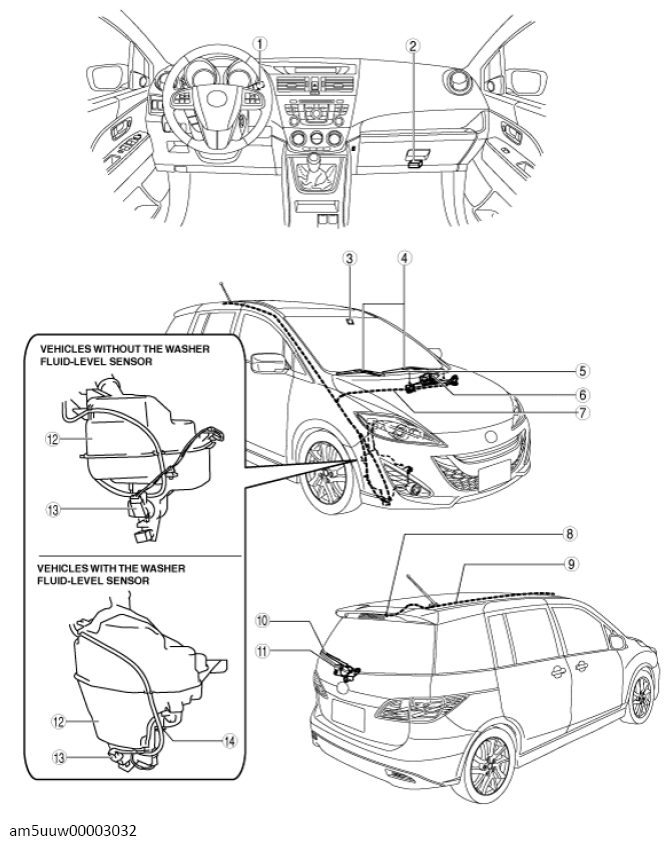

| 1 |
Wiper and washer switch
(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
(See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION .)
(See REAR WIPER AND WASHER SWITCH INSPECTION .)
(See WIPER/WASHER SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) |
| 2 |
BCM
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION
.)
(See BODY CONTROL MODULE (BCM) INSPECTION
.)
(See BODY CONTROL MODULE (BCM) CONFIGURATION
.)
(See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE
.) |
| 3 |
Rain sensor
(See RAIN SENSOR REMOVAL/INSTALLATION .)
(See RAIN SENSOR INITIALIZATION SETTING .) |
| 4 |
Windshield wiper arm and blade
(See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
(See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .) |
| 5 |
Windshield washer nozzle
(See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION .) |
| 6 |
Windshield wiper motor
(See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION .)
(See WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY .)
(See WINDSHIELD WIPER MOTOR INSPECTION .) |
| 7 |
Windshield washer hose
(See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .) |
| 8 |
Rear washer nozzle
(See REAR WASHER NOZZLE REMOVAL/INSTALLATION .)
(See REAR WASHER NOZZLE ADJUSTMENT .) |
| 9 |
Rear washer hose
(See REAR WASHER HOSE REMOVAL/INSTALLATION .) |
| 10 |
Rear wiper arm and blade
(See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
(See REAR WIPER ARM AND BLADE ADJUSTMENT .) |
| 11 |
Rear wiper motor
(See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
(See REAR WIPER MOTOR INSPECTION .) |
| 12 |
Washer tank
(See WASHER TANK REMOVAL/INSTALLATION .) |
| 13 |
Washer motor
(See WASHER MOTOR REMOVAL/INSTALLATION .)
(See WASHER MOTOR INSPECTION .) |
| 14 |
Washer fluid-level sensor
(See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .)
(See WASHER FLUID-LEVEL SENSOR INSPECTION .) |
