Hood Latch Switch Inspection

Disconnect the negative battery cable.
Remove the hood latch. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)

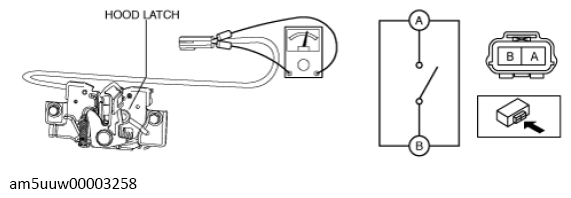

Verify that the continuity is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the hood latch.
NOTE:

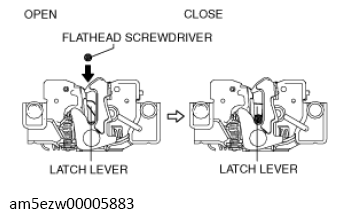

- Press the latch lever in using a flathead screwdriver to inspect the closed condition of the hood latch switch.
Courtesy of MAZDA MOTORS CORP.
