Symptom Troubleshooting - Keyless Entry System
›

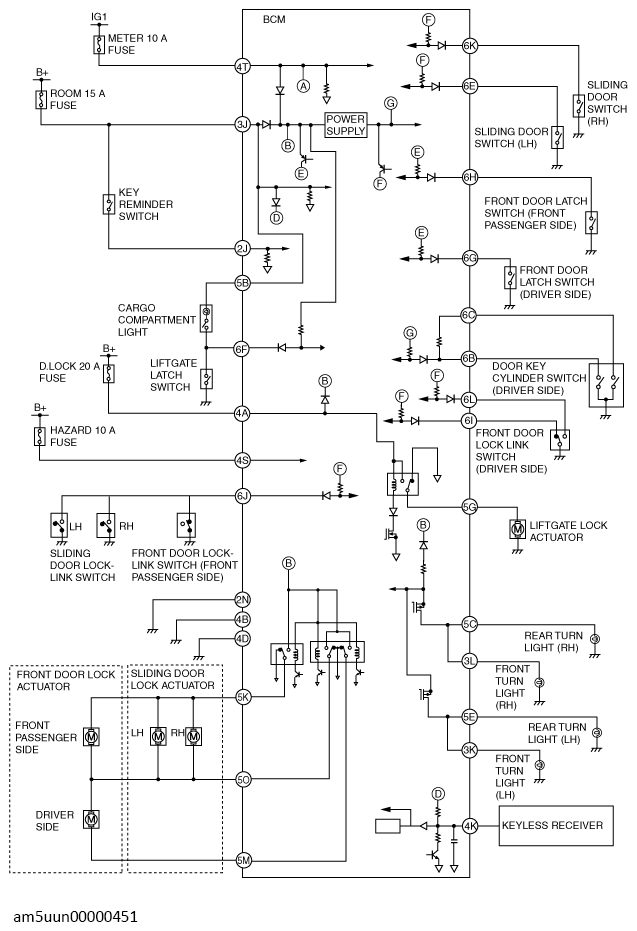

Keyless Entry System Wiring Diagram
Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
