Assist Handle Removal/Installation

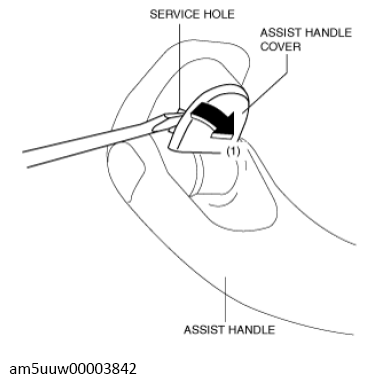

Insert a flathead screwdriver into the service hole and remove the assist handle covers in the direction of arrow (1).

Courtesy of MAZDA MOTORS CORP.

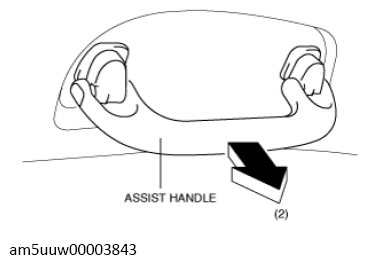

Pull the assist handle in the direction of arrow (2).

Courtesy of MAZDA MOTORS CORP.
Remove the assist handle.
Install in the reverse order of removal.
