Center Console Disassembly/Assembly

Disassemble in the order indicated in the table.

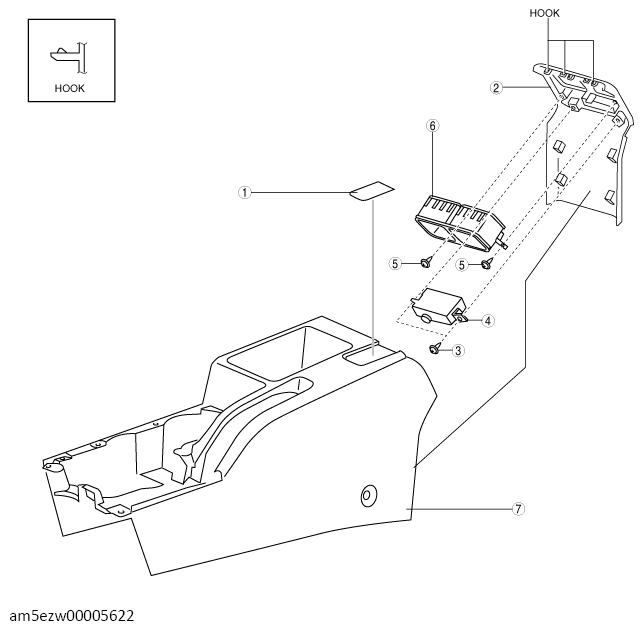

G13728337

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Cover
2	Panel console
3	Screw A
4	Rear fan switch
5	Screw B
6	Center louver
7	Center console

Assemble in the reverse order of disassembly.
