Center Console Removal/Installation
- Disconnect the negative battery cable.
- Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
- Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)

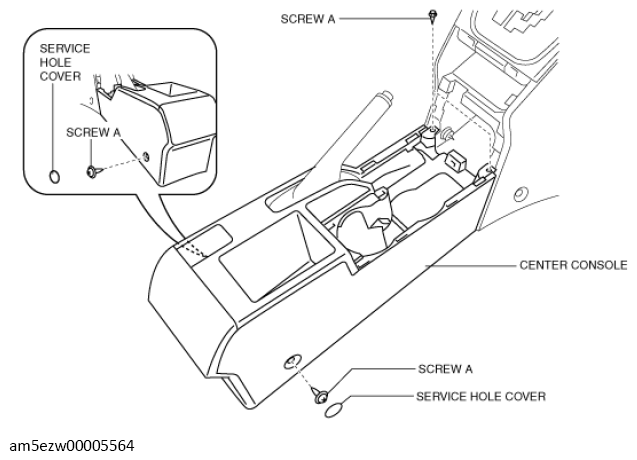

- Remove the service hole cover, then remove the screws A.

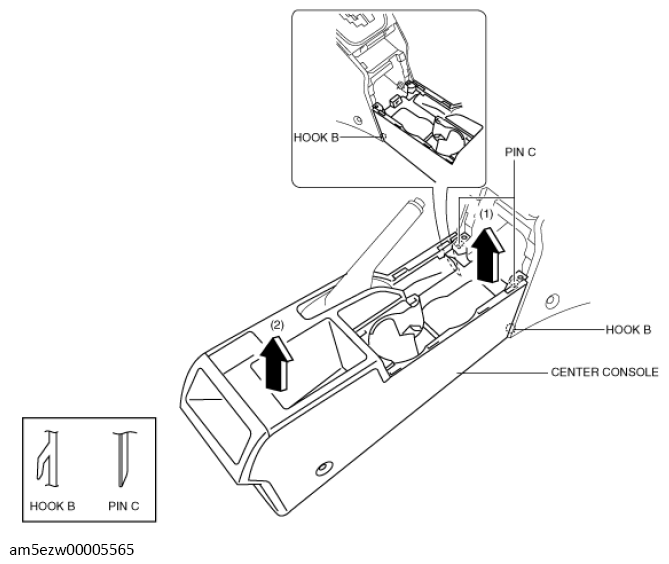

- Pull the center console in the direction of the arrow (1), (2) while remove the hooks B and pins C.
- Disconnect the rear fan switch connector. (See REAR FAN SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
- Remove the center console.
- Install in the reverse order of removal.
