Column Cover Removal/Installation

  1. Pull down the steering wheel.

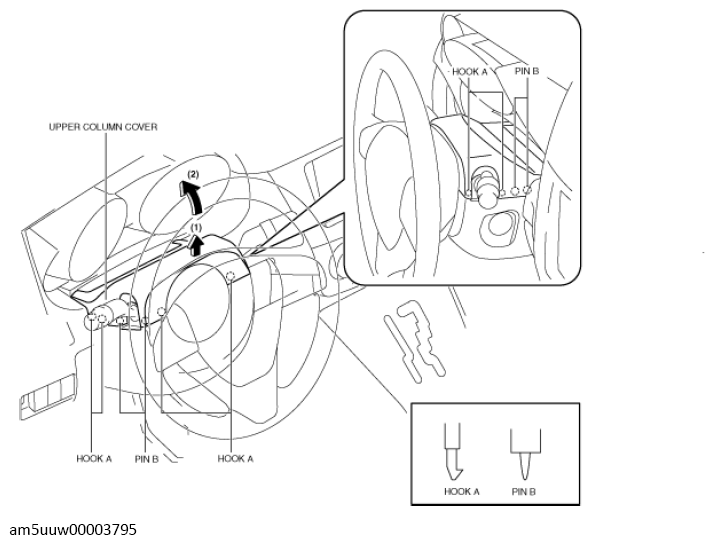

  2. Pull the upper column cover in the direction of the arrow in the order of (1) and (2), then remove the upper column cover while detaching the hooks A and pins B.
    G13728340Courtesy of MAZDA MOTORS CORP.
  3. Remove the upper column cover.
  4. Pull up the steering wheel.
  5. Retract the steering wheel to the end position.

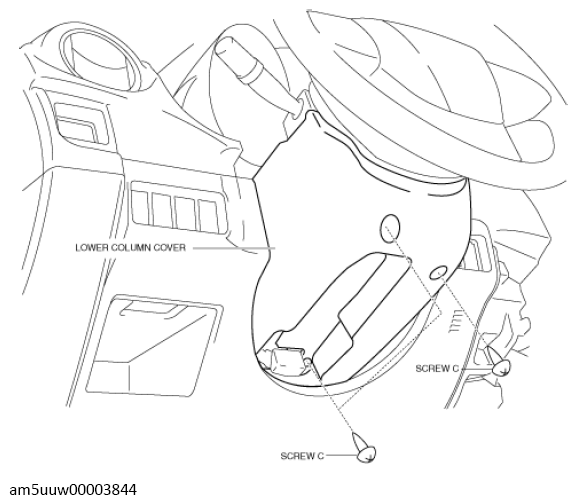

  6. Remove the screws C.
    G13728341Courtesy of MAZDA MOTORS CORP.

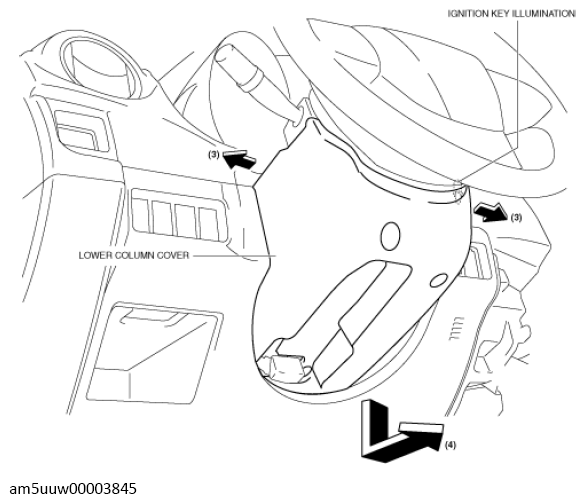

  7. Remove the lower column cover in the direction of the arrow (4) while keeping it open in the direction of the arrow (3) shown in the figure.
    G13728342Courtesy of MAZDA MOTORS CORP.
  8. Remove the ignition key illumination.
  9. Install in the reverse order of removal.
