Front Door Trim Disassembly/Assembly: Driver-side

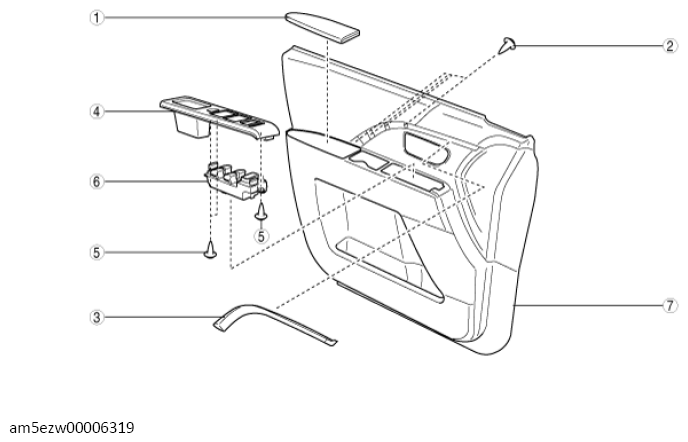

  1. Disassemble in the order shown in the figure.
    G13728363Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Armrest
    2 Screw A
    3 Decoration panel
    4 Switch panel cover
    5 Screw B
    6 Power window main switch
    7 Front door trim
  2. Assemble in the reverse order of disassembly.
