SUNVISOR Removal/Installation

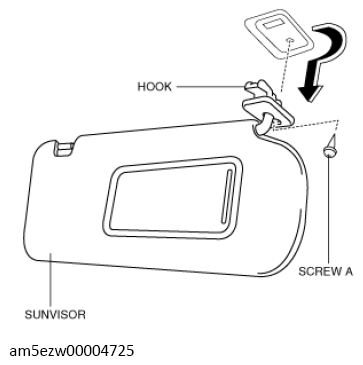

  1. Remove the screw A.
    G13728412Courtesy of MAZDA MOTORS CORP.
  2. Rotate the sunvisor in the direction of the arrow.
  3. Unhook and remove the sunvisor.

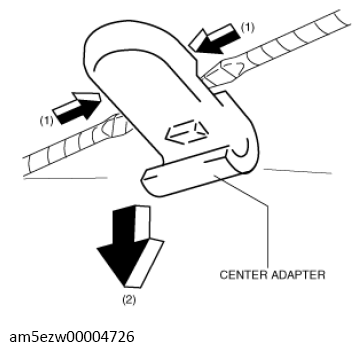

  4. Press the center adaptor tabs in the direction of the arrow (1), then remove the center adaptor in the direction of the arrow (2) shown in the figure.
    G13728413Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
