Shift Panel Removal/Installation: ATX

Selector lever to neutral position.
Remove the following parts:
1. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
2. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
3. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)

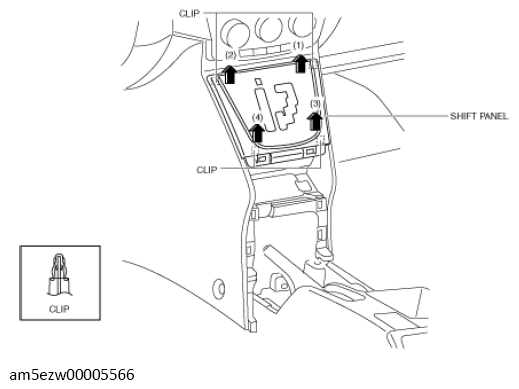

Pull the shift panel in the direction of the arrow (1), (2), (3), (4) while remove the clips.

Courtesy of MAZDA MOTORS CORP.
Remove the shift panel.
Install in the reverse order of removal.
