Power Outer Mirror Removal/Installation

Disconnect the negative battery cable.
Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)

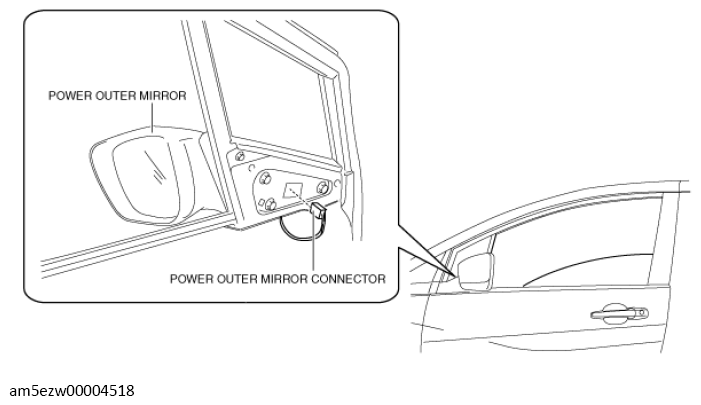

Disconnect the power outer mirror connector.

Courtesy of MAZDA MOTORS CORP.

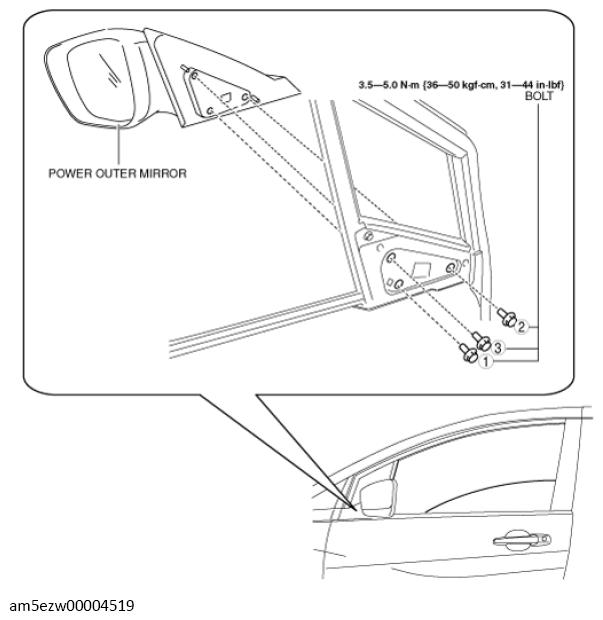

Remove the bolts in the order shown in the figure.

Fig 1: Power Outer Mirror Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Always install the bolts in the reverse order of removal.
Remove the power outer mirror.
Install in the reverse order of removal.
