Main Fuse Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove nuts A and B shown in the figure.

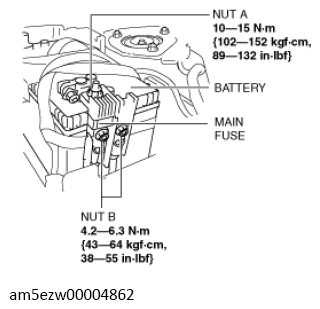

    Fig 1: Battery, Main Fuse Nuts With Torque Specification
    G13728669Courtesy of MAZDA MOTORS CORP.
  3. Remove the main fuse.
  4. Install in the reverse order of removal.
