Initial check
- Switch the ignition ON.

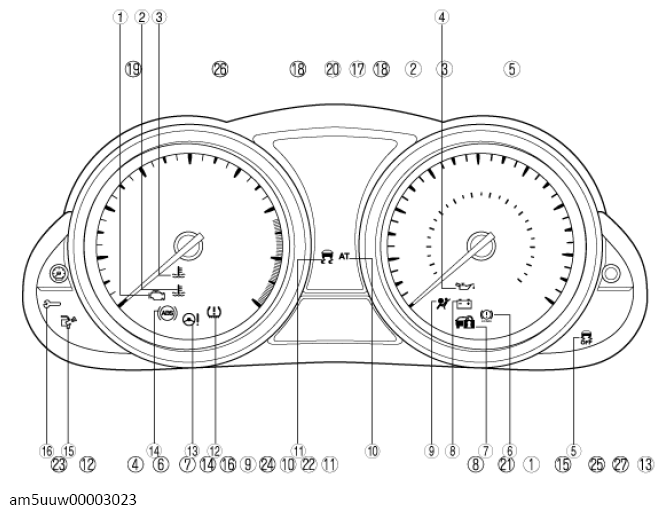

- Verify that the warning/indicator lights in the table below illuminate.
-: Not applicable
| No. | Name | Comment |
|---|---|---|
| 1 | Check engine light | - |
| 2 | High engine coolant temperature warning light (red) | - |
| 3 | Low engine coolant temperature indicator light (blue) | - |
| 4 | Engine oil pressure warning light | - |
| 5 | DSC OFF indicator light | With DSC |
| 6 | Brake system warning light | - |
| 7 | Security indicator light | With immobilizer system |
| 8 | Charging system warning light | - |
| 9 | Air bag/Front seat belt pretensioner system warning light | - |
| 10 | Automatic transaxle warning light | ATX |
| 11 | TCS/DSC indicator light | - |
| 12 | Tire pressure monitoring system warning light | - |
| 13 | Power steering malfunction indicator light | - |
| 14 | ABS warning light | - |
| 15 | Check fuel cap warning light | - |
| 16 | Malfunction warning light | With malfunction warning light |
