Using the M-MDS
- Connect the M-MDS (IDS) to the DLC-2.
- After the vehicle is identified, select the following items from the initialization screen of the IDS.
- Select "DataLogger".
- Select "Modules".
- Select "IC".
- Verify that the warning/indicator lights in the following table illuminate using "WL+IL".
-: Not applicable

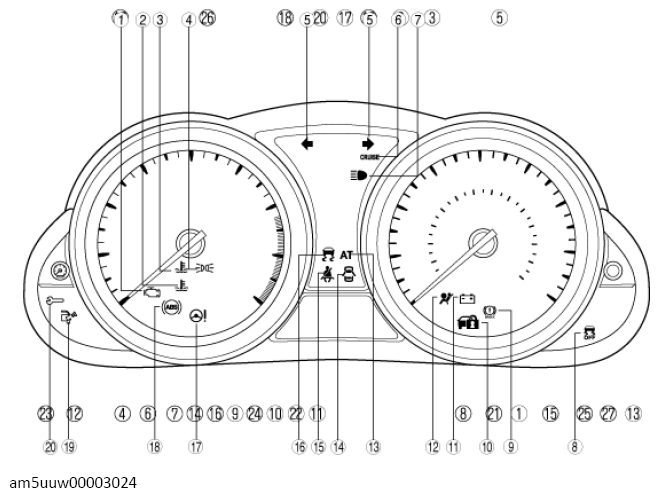

| No. | Name | Comment |
|---|---|---|
| 1 | Check engine light | - |
| 2 | High engine coolant temperature warning light (red) | - |
| 3 | Low engine coolant temperature indicator light (blue) | - |
| 4 | Lights-on indicator light | - |
| 5 | Turn signal/Hazard warning indicator lights | - |
| 6 | Cruise main indicator light (amber)/cruise set indicator light (green) | With cruise control system |
| 7 | Headlight main-beam indicator light | - |
| 8 | DSC OFF indicator light | With DSC |
| 9 | Brake system warning light | - |
| 10 | Security indicator light | With immobilizer system |
| 11 | Charging system warning light | - |
| 12 | Air bag/front seat belt pre-tensioner system warning light | - |
| 13 | Automatic transmission warning light | ATX |
| 14 | Door-ajar warning light | - |
| 15 | Seat belt warning light | - |
| 16 | TCS/DSC indicator light | With DSC |
| 17 | Power steering malfunction indicator light | - |
| 18 | ABS warning light | - |
| 19 | Check fuel cap warning light | - |
| 20 | Malfunction warning light | With malfunction warning light |
