Breather Hose Installation Note
Breather Hose Installation Note

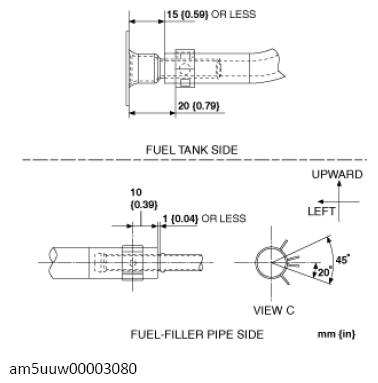

Install the breather hose as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
