Rear Blower Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

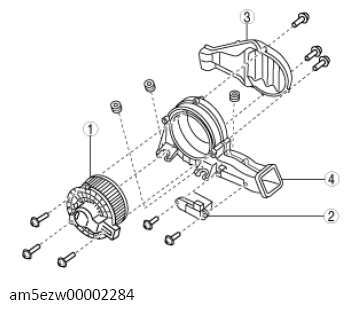

    G13728867Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Rear blower motor
    2 Rear power MOS FET
    3 Rear blower duct
    4 Case
  2. Assemble in the reverse order of disassemble.
