Seat Weight Sensor Control Module Removal/Installation [Two-Step Deployment Control System]

CAUTION:
  1. Switch the ignition to off.
  2. Disconnect the negative battery cable and wait for 1 min or more.
  3. Remove the connector.

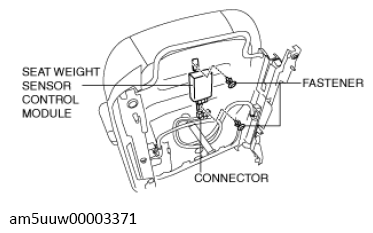

    G13729130Courtesy of MAZDA MOTORS CORP.
  4. Remove the fastener.
  5. Remove the seat weight sensor control module.
  6. Install in the reverse order of removal.
