Front Lower Arm Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

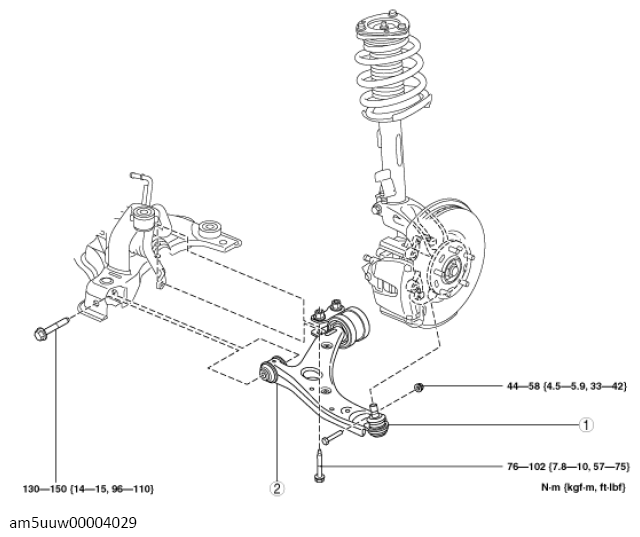

Fig 1: Front Lower Arm Components With Torque Specification
G13726967Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Front lower arm ball joint
(See FRONT LOWER ARM BALL JOINT INSTALLATION NOTE .)
2 Front lower arm
