Line Pressure Test Preparation

  1. Set the oil cooler out of the way to prevent interference with the SST.
    1. Disconnect the oil cooler from the transaxle. (See OIL COOLER REMOVAL/INSTALLATION .)
      NOTE:
      • Do not disconnect the oil hose and water hose from the oil cooler and transaxle to perform the line pressure test.

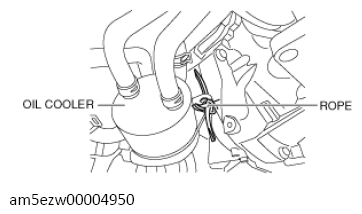

    2. Suspend the oil cooler using rope to secure the disconnected oil cooler.
      G13727447Courtesy of MAZDA MOTORS CORP.
      CAUTION:
      • To prevent damage to the parts, do not pull the oil hose and water hose excessively.
      • To prevent damage to the parts, do not twist the oil hose and water hose.
      • To prevent part damage, do not allow parts to interfere with the cooling fan.
