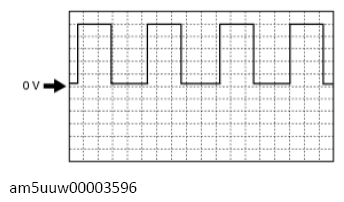

Inspection Using an Oscilloscope (Reference): VSS

Courtesy of MAZDA MOTORS CORP.

• Terminal: Z (+)-GND (-)
• Oscilloscope setting: 1 V/DIV (Y), 2 ms/DIV (X), DC range
• Measurement condition: When all of the following conditions are met:
  • Vehicle speed: 30 km/h {19 mph}
  • 3GR
