Symptom Troubleshooting - Automatic Transmission
›

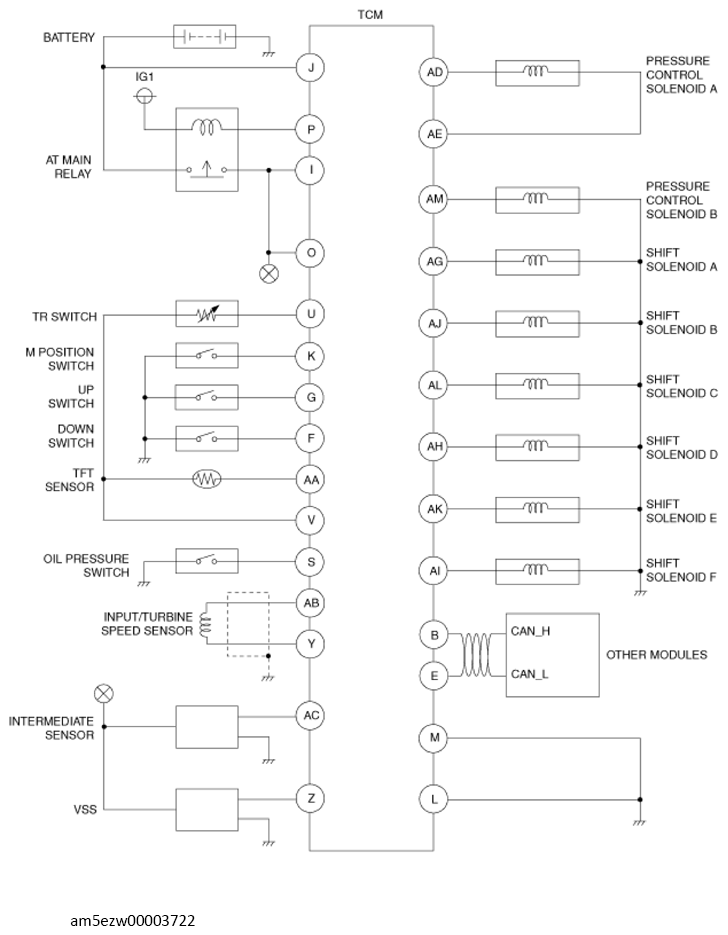

Automatic Transaxle Control System Wiring Diagram
Automatic Transaxle Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
