Selector Lever Inspection

  1. Switch the ignition ON.
  2. Inspect the selector lever as follows:
    • If there is any malfunction, replace the selector cable. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)

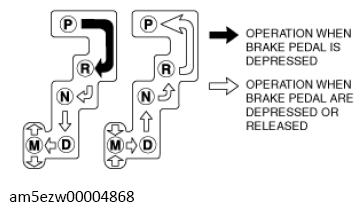

      1. Verify that the selector lever can be operated as shown in the figure.
        G13727558Courtesy of MAZDA MOTORS CORP.
      2. Verify that the selector lever can be operated smoothly.
