Horn Removal/Installation

  1. Disconnect the negative battery cable.
  2. Slightly bend back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

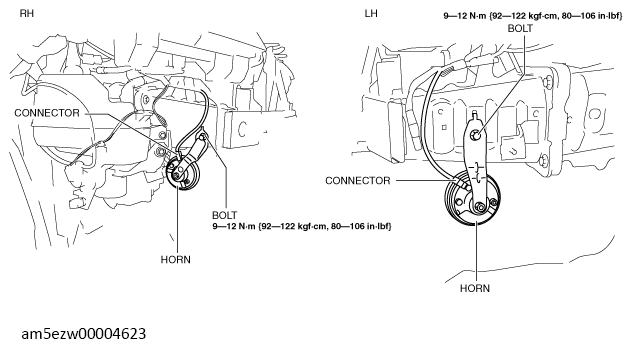

    Fig 1: Horn Bolts With Torque Specification (LH, RH)
    G13728714Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the horn.
  6. Install in the reverse order of removal.
