Rear ABS Wheel-speed Sensor Wiring Harness Installation Note

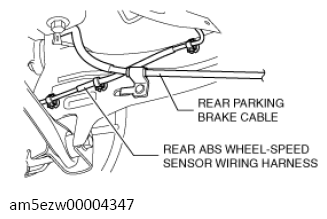

  1. Pass the rear ABS wheel-speed sensor wiring harness outside the rear parking brake cable as shown in the figure.
    G13727257Courtesy of MAZDA MOTORS CORP.
  2. Install the rear ABS wheel-speed sensor wiring harness.
