Airflow Mode Main Link Installation Note
CAUTION:
- Apply only the specified grease to links. Otherwise abnormal noise or improper operation may result.

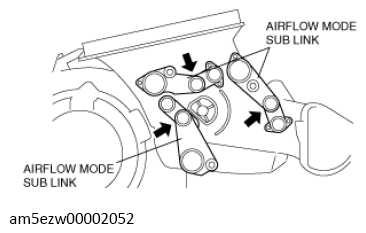

- Push and hold each airflow mode sub link in the direction of the arrow.

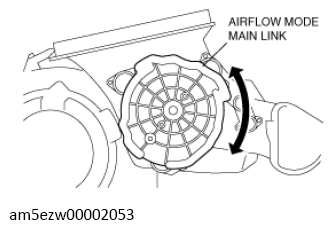

- Set the airflow mode main link to the A/C unit as shown in the figure.
- Press the airflow mode main link lightly to the A/C unit it in the direction shown by the arrow, then set the projections of each airflow mode sub link into the grooves of the airflow mode main link.
- Rotate airflow mode main link and verify that each mode is accessed properly.
