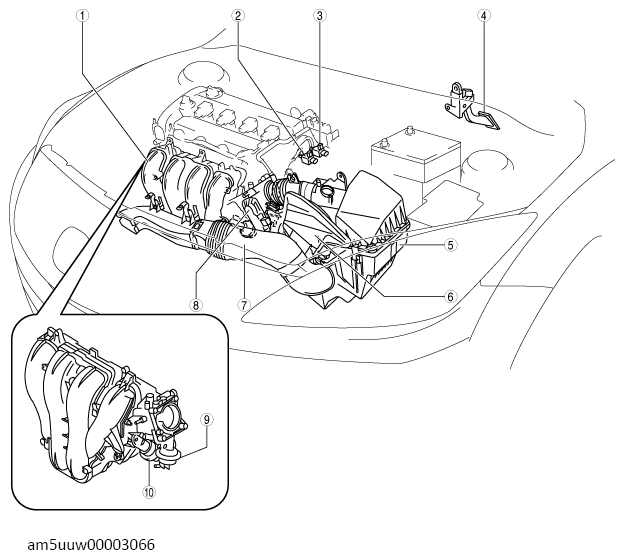

Intake-Air System Location Index

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See INTAKE MANIFOLD VACUUM INSPECTION .)
2	Variable intake air solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See VARIABLE INTAKE AIR SOLENOID VALVE INSPECTION .)
3	Variable tumble solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See VARIABLE TUMBLE SOLENOID VALVE INSPECTION .)
4	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION .)
5	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION .) (See AIR CLEANER ELEMENT INSPECTION .)
6	Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
7	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
8	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See THROTTLE BODY INSPECTION .)
9	Variable tumble shutter valve actuator (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR INSPECTION .)
10	Variable intake air shutter valve actuator (See VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSPECTION .)
