No. 1 Engine Mount: Notes

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

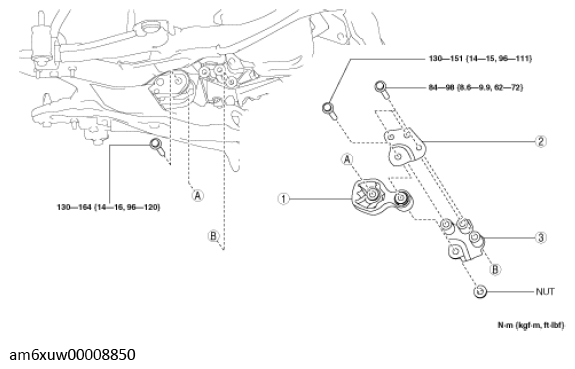

Fig 1: Disassembling/Assembling Engine Mount

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 1 engine mount rubber (See No. 1 engine mount rubber removal note .) (See No. 1 engine mount installation note .)
2	Bracket plate (See No. 1 engine mount installation note .)
3	No. 1 engine mount bracket (See No. 1 engine mount installation note .)
