Section 45 (Security And Lock System)
›
Security And Locks Location Index
›
Advanced Keyless Entry System/Push Button Start System/Immobilizer System
Advanced Keyless Entry System/Push Button Start System/Immobilizer System
WARNING:
This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

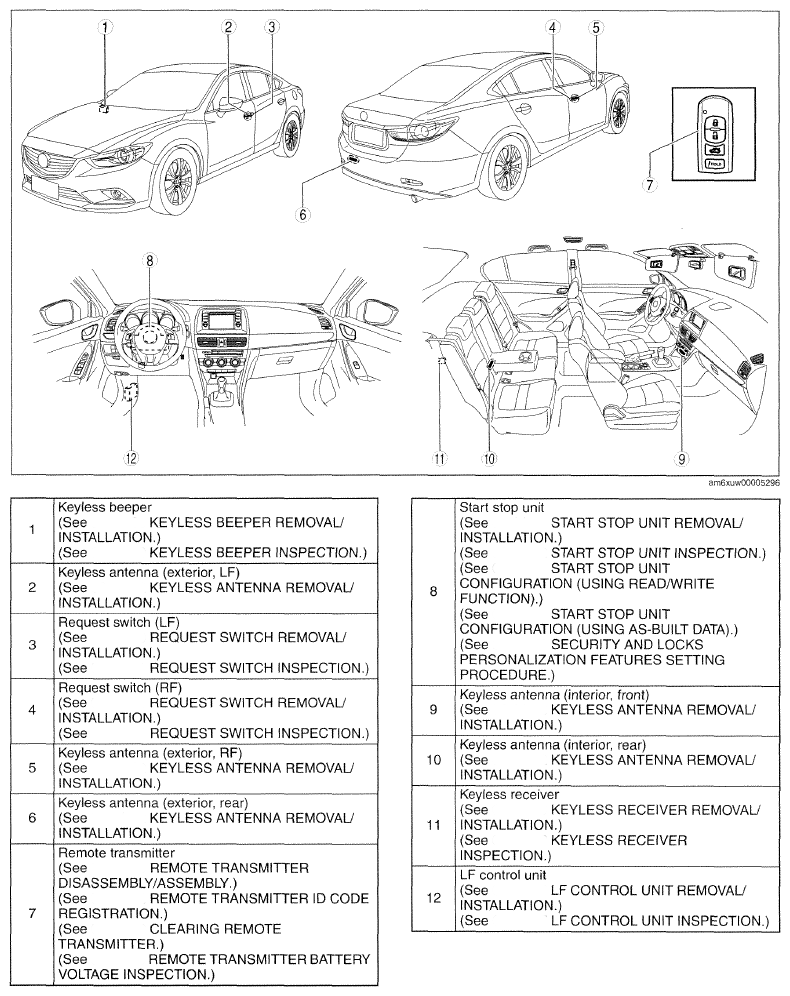

Fig 1: Advanced Keyless Entry System/Push Button Start System/Immobilizer System Component Locations
Courtesy of MAZDA MOTORS CORP.
