Steering Wheel And Column Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
CAUTION:
  • If the EPS CM configuration is not completed, the EPS will not operate properly. If the EPS CM is replaced, always use the automatic configuration function so that the EPS operation conditions are correct.
  • If the EPS column is dropped it could result in internal damage to the EPS CM, therefore be careful not to drop it. Replace the EPS CM if it is subjected to an impact.
NOTE:
  • When the ignition is switched ON or the engine is started after the EPS CM has been replaced, the EPS CM reads data from the instrument cluster via CAN communication to perform automatic configuration.
  • The EPS CM prior to replacement stores the vehicle specification information.
  • A new EPS CM does not store any vehicle specification information.
  1. Remove the driver-side front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Remove the driver-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
  4. Remove the shift lever knob (MTX vehicles). (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
  5. Remove the selector lever knob (ATX vehicles). (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  6. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  7. Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION .)
  8. Remove the front console box. (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
  9. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  10. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  11. Disconnect the hood release lever from the lower panel. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  12. Remove the fuel-filler lid opener lever. (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
  13. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
  14. Remove the driver-side front heat duct. (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  15. Detach the harness clips shown in the figure.
  16. Remove in the order indicated in the table.
  17. Install in the reverse order of removal.
  18. If the EPS CM is replaced, perform the following procedure.
    1. After installation, switch the ignition ON or start the engine, and maintain this condition for approx. 1 min.  to allow the EPS CM automatic configuration to be performed.
    2. Switch the ignition OFF, and maintain this condition for approx. 3 s
    3. Switch the ignition ON (engine on or off) to allow the EPS CM automatic configuration to be performed.
    4. Clear the DTC from the memory. (See ELECTRIC POWER STEERING (EPS) ON-BOARD DIAGNOSIS .)

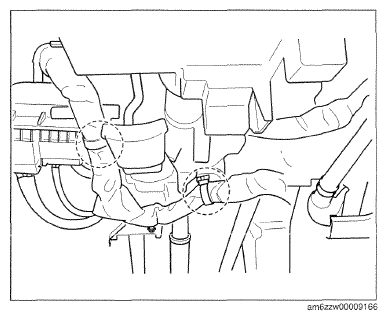

      Fig 1: Identifying Electric Power Steering Clips And Hose Joints
      G09786320Courtesy of MAZDA MOTORS CORP.

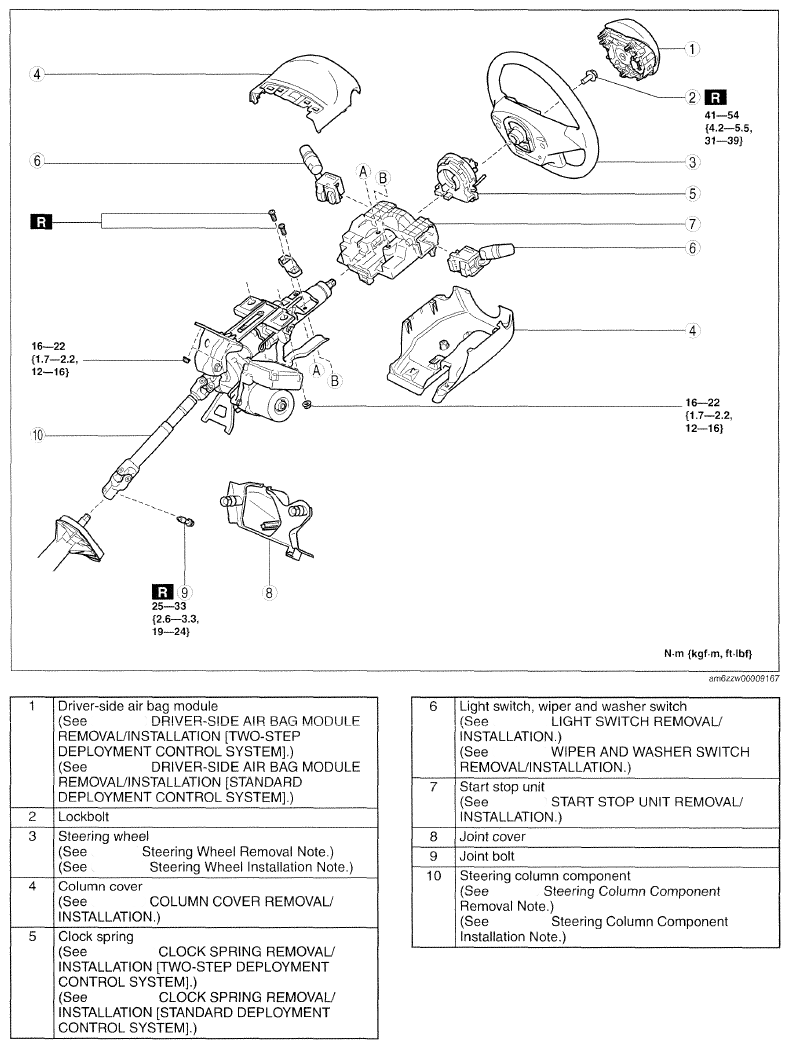

      Fig 2: Exploded View Of Electric Power Steering (1 Of 2) With Torque Specifications
      G09786321Courtesy of MAZDA MOTORS CORP.

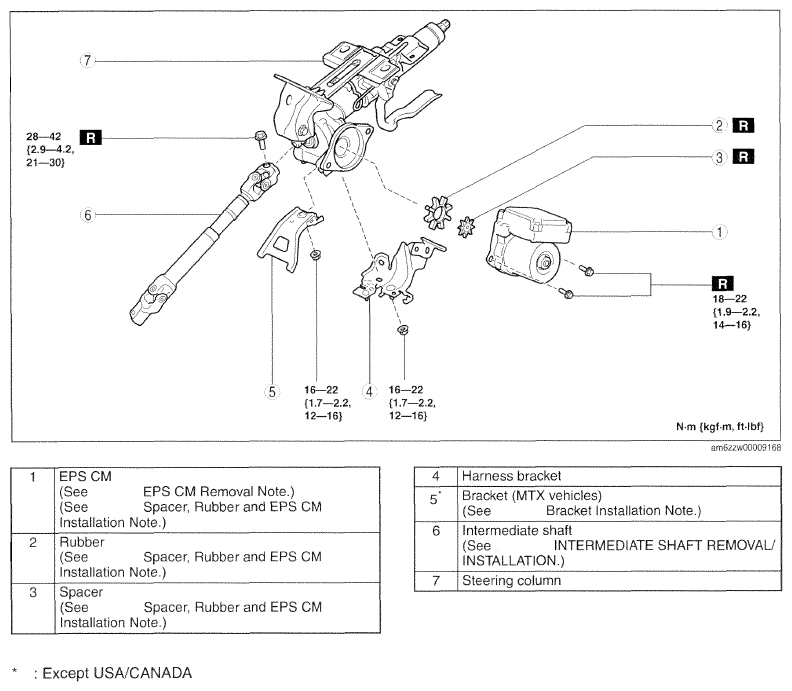

      Fig 3: Exploded View Of Electric Power Steering (2 Of 2) With Torque Specifications
      G09786322Courtesy of MAZDA MOTORS CORP.
