On-Board Diagnostic - Position Memory Control Module
›
On-Board Diagnostic Wiring Diagram [Position Memory Control Module]
On-Board Diagnostic Wiring Diagram [Position Memory Control Module]

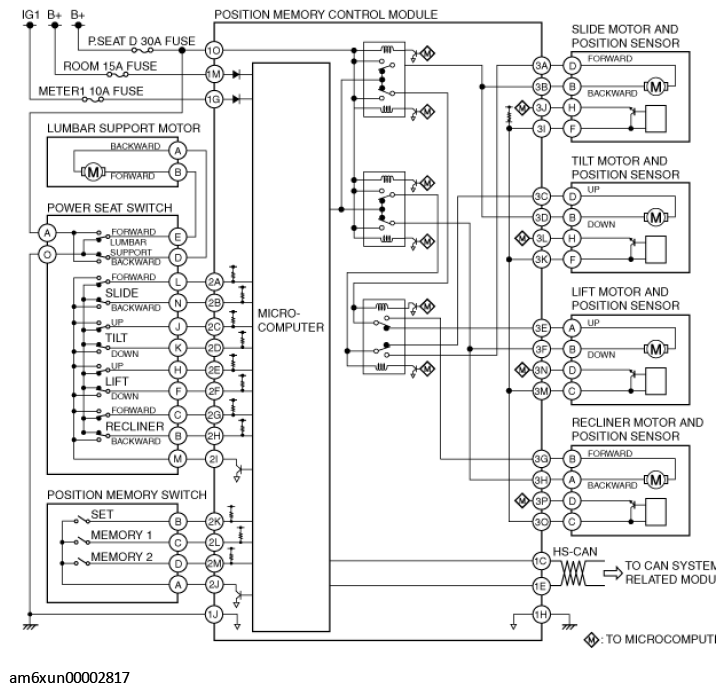

Fig 1: On-Board Diagnostic (Position Memory Control Module) Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
