Foreword [Blind Spot Monitoring (BSM) Control Module]
›
Troubleshooting Procedure
Troubleshooting Procedure

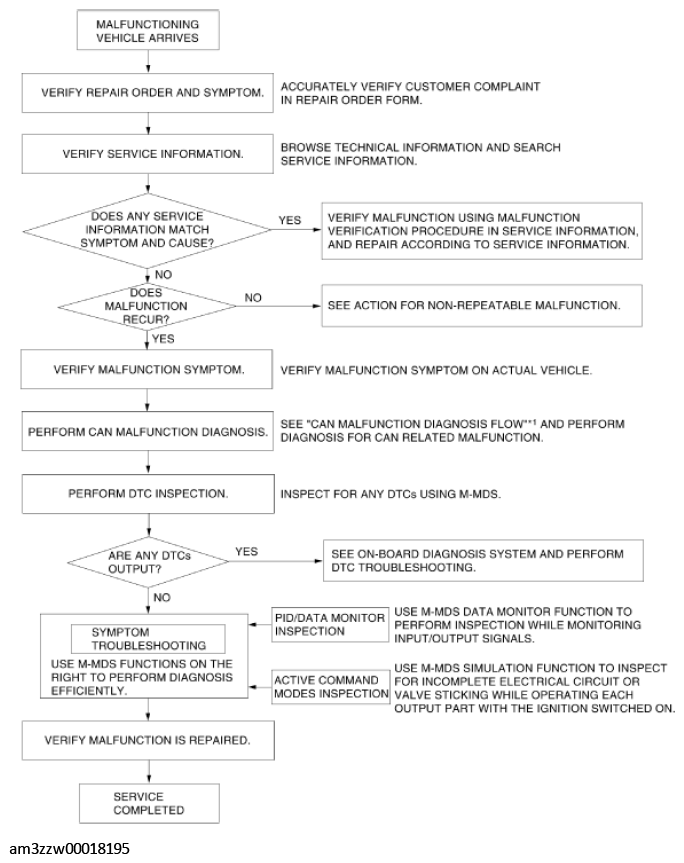

Fig 1: Foreword (Blind Spot Monitoring Control Module) - Troubleshooting Procedure Chart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
