Rain Sensor Installation Note

CAUTION:

If the rate at which the rain sensor reflects or transmits infrared light between the rain sensor and the windshield, or through the protective sheet is changed, the rain sensor will determine that there is a malfunction in the rain detection function and stop auto wiper system control. Be careful of the following when installing the rain sensor:
- Do not reuse the rain sensor protective sheet
- Do not touch the rain sensor lens, rain sensor protective sheet, and sensor installation area on windshield with your fingers
- Verify that there is no air bubble after installing the rain sensor

Wipe off any oil or dirt from the rain sensor lens and the windshield using a clean rag.

Fig 1: Wiping Off Any Oil Or Dirt
Courtesy of MAZDA MOTORS CORP.
Peel off backing of double-sided adhesive tape A from the rain sensor protective sheet.

Fig 2: Peeling Off Backing Of Double-Sided Adhesive Tape A
Courtesy of MAZDA MOTORS CORP.
Adhere the rain sensor protective sheet to the rain sensor lens.

Fig 3: Adhering Rain Sensor Protective Sheet
Courtesy of MAZDA MOTORS CORP.
Peel off backing of double-sided adhesive tape B from the rain sensor protective sheet.

Fig 4: Peeling Off Backing Of Double-Sided Adhesive Tape B
Courtesy of MAZDA MOTORS CORP.

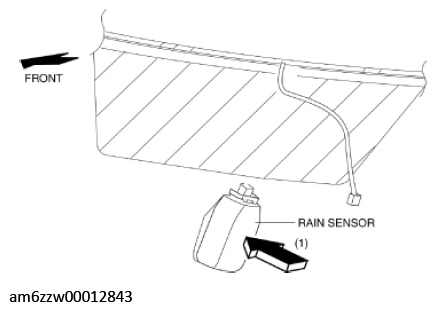

Install the rain sensor in the direction of the arrow (1).

Fig 5: Installing Rain Sensor
Courtesy of MAZDA MOTORS CORP.
Press the rain sensor in the direction of the arrow (1) shown in the figure and press out any air bubbles.

Fig 6: Pressing Rain Sensor
Courtesy of MAZDA MOTORS CORP.
Verify that there is no air bubble between the rain sensor and the windshield.
