Audio Panel Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
2. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)

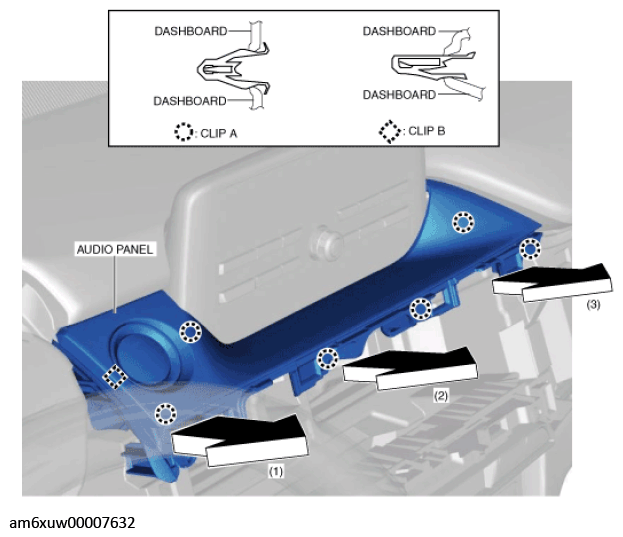

Move the audio panel in the order of arrows (1), (2) shown in the figure, and detach the clips A and clip B.

Fig 1: Removing Audio Panel
Courtesy of MAZDA MOTORS CORP.
Disconnect the push button start connector.
Install in the reverse order of removal.
