Console Side Panel Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
Remove the console side panel in the direction of arrow shown in the figure while detaching clips.

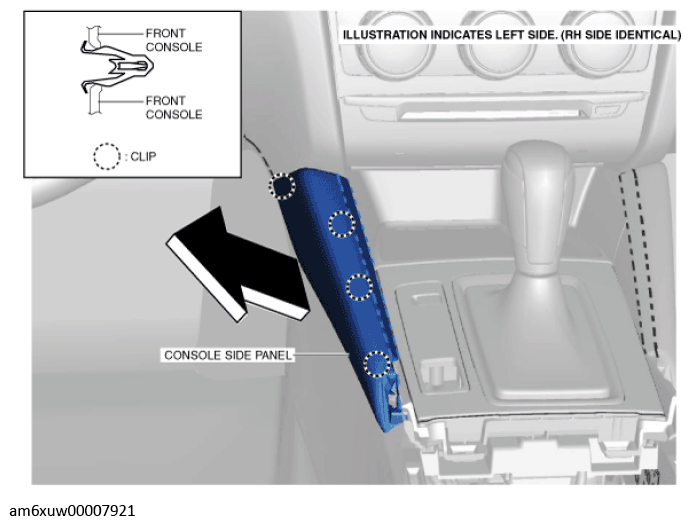

Fig 1: Removing Console Side Panel With Clips
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
