Dashboard Disassembly/Assembly
- Disassemble in the order indicated in the table.

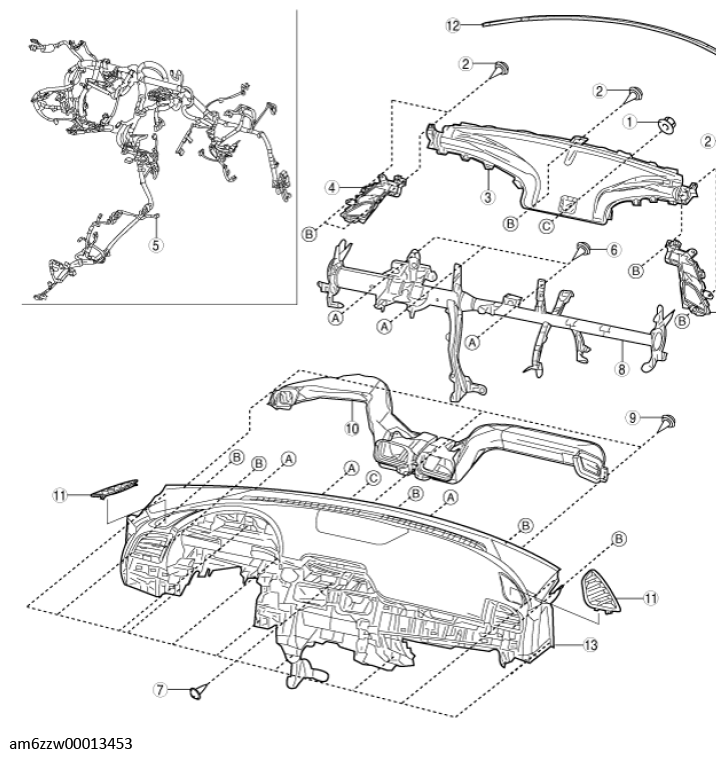

Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Nut |
| 2 |
Screw |
| 3 |
Center defroster |
| 4 |
Side defroster |
| 5 |
Wiring harness |
| 6 |
Screw |
| 7 |
Screw |
| 8 |
Dashboard member |
| 9 |
Screw |
| 10 |
Duct |
| 11 |
Demister grille |
| 12 |
Seal tape |
| 13 |
Dashboard |
- Assemble in the reverse order of disassembly.
