Upper Panel Disassembly/Assembly

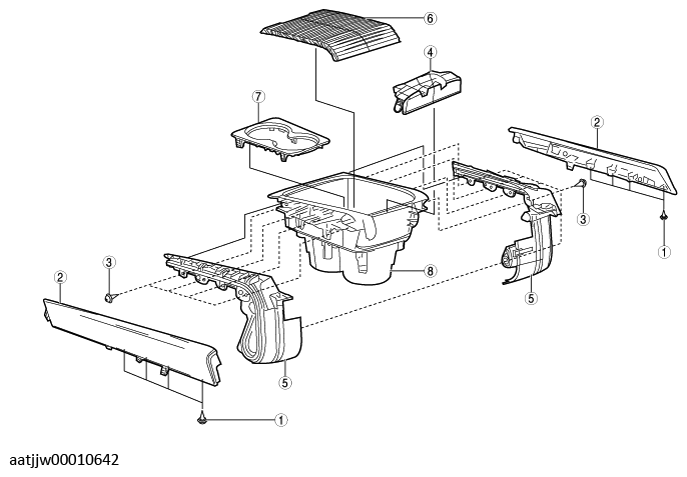

- Disassemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Screw |
| 2 |
Console bracket |
| 3 |
Screw |
| 4 |
Panel up |
| 5 |
Rail |
| 6 |
Shutter |
| 7 |
Console cover |
| 8 |
Console box |
- Assemble in the reverse order of disassembly.
