Replacing Active Driving Display as Single Component

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    2. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    3. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  3. Disconnect the connector and remove the wiring harness.

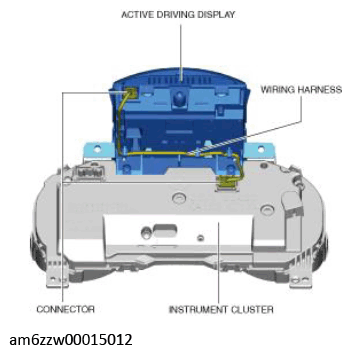

    Fig 1: Active Driving Display Wiring Harness, Connector And Instrument Cluster
    G11544437Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.

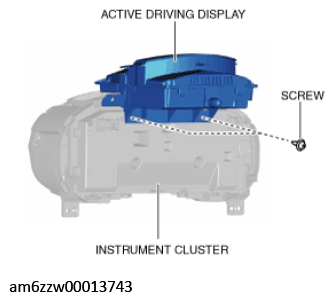

    Fig 2: Removing Active Driving Display With Screws
    G11544438Courtesy of MAZDA MOTORS CORP.
  5. Remove the active driving display.
  6. Install in the reverse order of removal.
