Urethane attachment

  1. Attach urethane to the position shown in the figure using the projection as a reference.

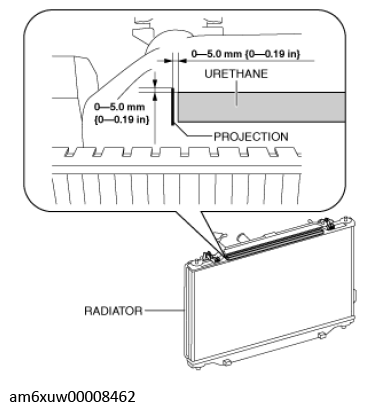

Fig 1: Attaching Urethane To Radiator
G11546809Courtesy of MAZDA MOTORS CORP.
