Plug Hole Plate Removal/Installation: Removal

1. Pull up the front part of the plug hole plate at the same time and remove the rubber from the adapter on the engine side.

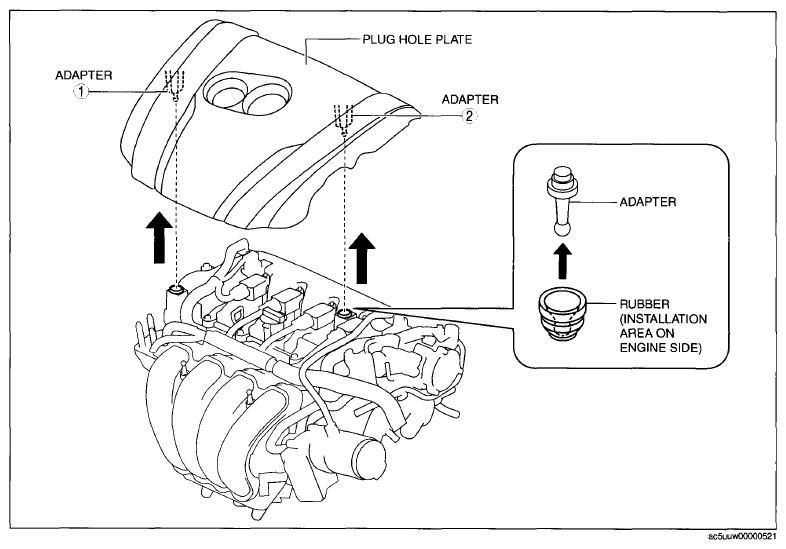

   Fig 1: Pulling Front Part Of Plug Hole Plate

   Courtesy of MAZDA MOTORS CORP.
2. Pull up the plug hole plate in the order shown in the figure and remove the adapter from the rubber on the engine side.

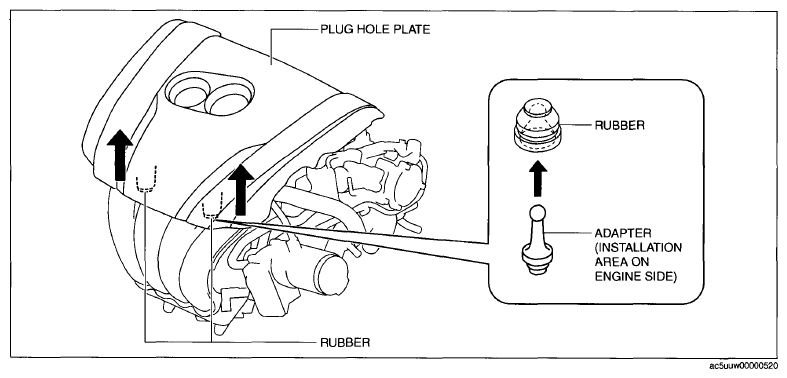

Fig 2: Removing Adapter From Rubber On Engine Side

Courtesy of MAZDA MOTORS CORP.
