Air Hose Installation Note

1. Install the air hose as shown in the figure.

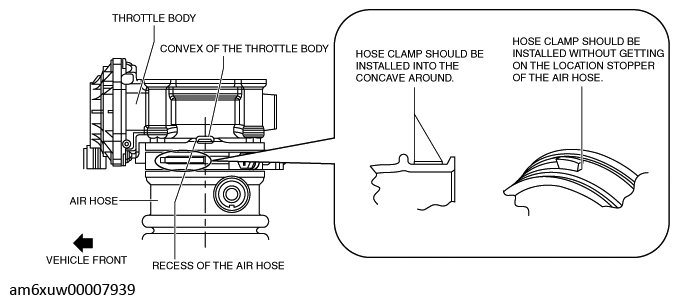

Throttle body side

Fig 1: Installing Air Hose - Throttle Body Side

Courtesy of MAZDA MOTORS CORP.

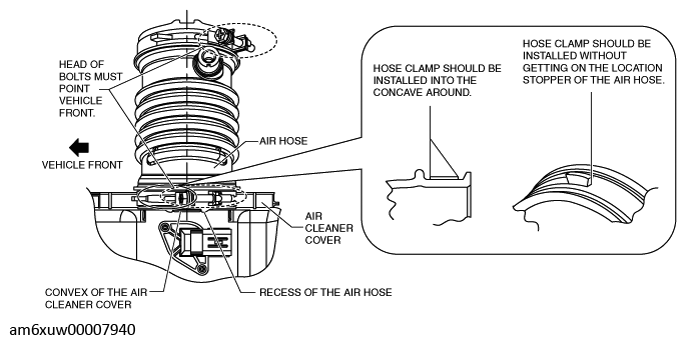

Air cleaner side

Fig 2: Installing Air Hose - Air Cleaner Side

Courtesy of MAZDA MOTORS CORP.
