Evaporative Hose Installation Note

  1. Install the evaporative hose as shown in the figure.

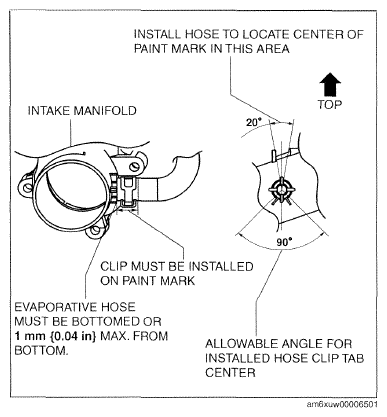

Fig 1: Installing Evaporative Hose
G09786769Courtesy of MAZDA MOTORS CORP.
