Fresh-air Duct Installation Note

  1. Install the fresh-air duct as shown in the figure.

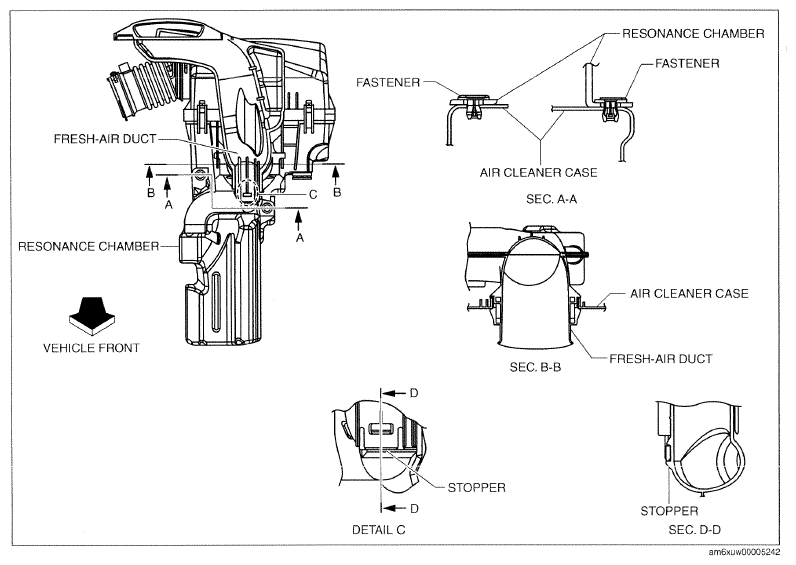

Fig 1: Installing Fresh-Air Duct
G09786772Courtesy of MAZDA MOTORS CORP.
