Ventilation Hose Installation Note

1. Install the ventilation hose as shown in the figure.

Cylinder head cover side

Fig 1: Installing Ventilation Hose - Cylinder Head Cover Side

Courtesy of MAZDA MOTORS CORP.

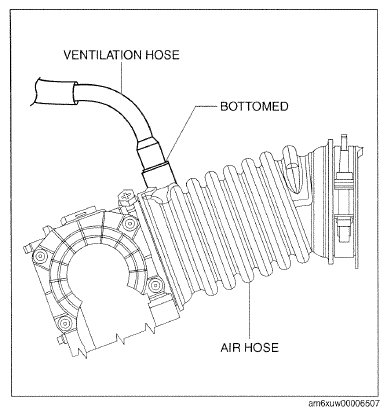

Air hose side

Fig 2: Installing Ventilation Hose - Air Hose Side

Courtesy of MAZDA MOTORS CORP.
