Control System Diagram
Control System Diagram

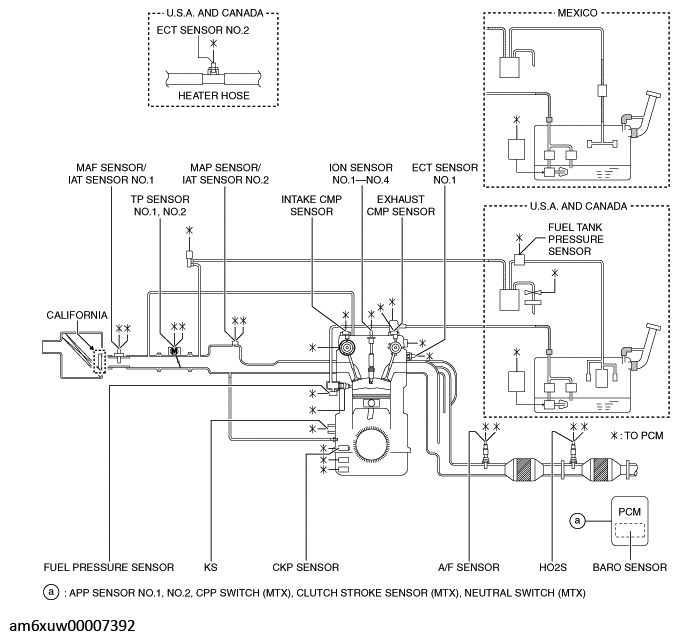

Fig 1: Control System Diagram (SKYACTIV-G 2.5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
