Rear Housing Installation Note

NOTE:

After applying silicone sealant, install the rear housing within 10 min. and then tighten all bolts within 5 min.

Apply silicone sealant to the areas shown in the figure.

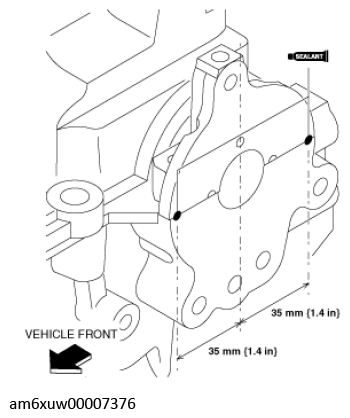

Fig 1: Silicone Sealant Applying Area On Rear Housing
Courtesy of MAZDA MOTORS CORP.

Thickness

3.0-7.0 mm {0.12-0.27 in}
Install the rear housing.
