Quick Diagnostic Chart

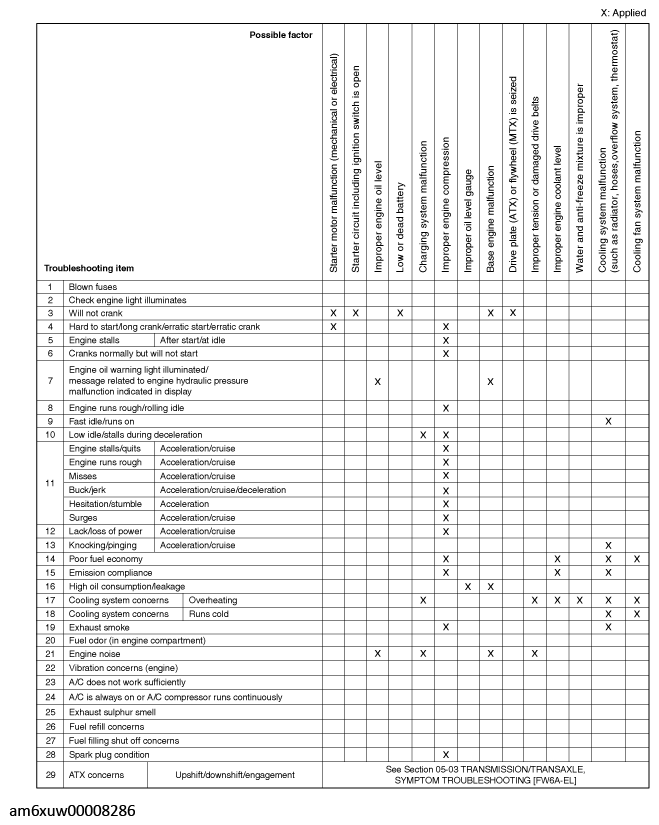

Fig 1: Quick Diagnostic Chart (1 Of 8)

G11545393

Courtesy of MAZDA MOTORS CORP.

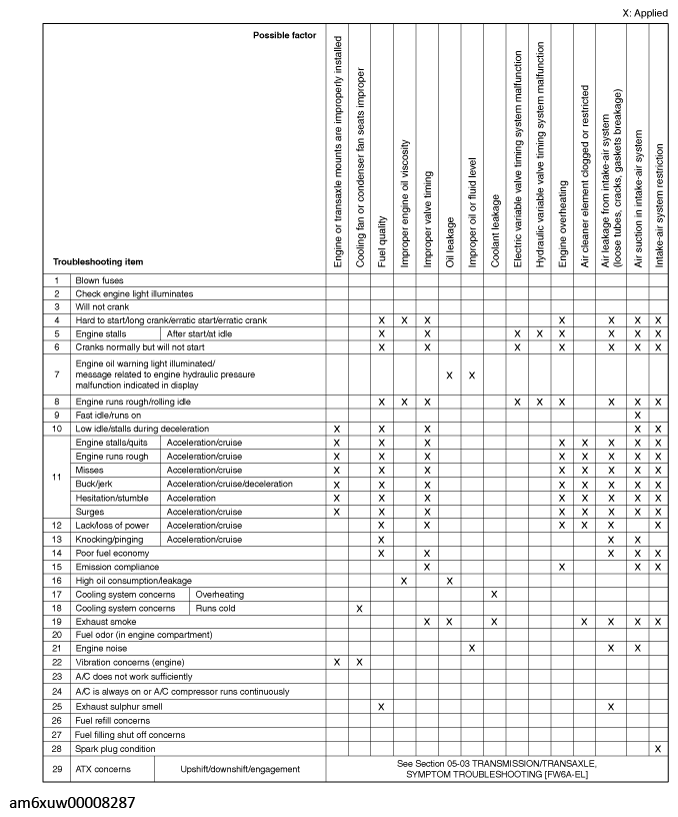

Fig 2: Quick Diagnostic Chart (2 Of 8)

G11545394

Courtesy of MAZDA MOTORS CORP.

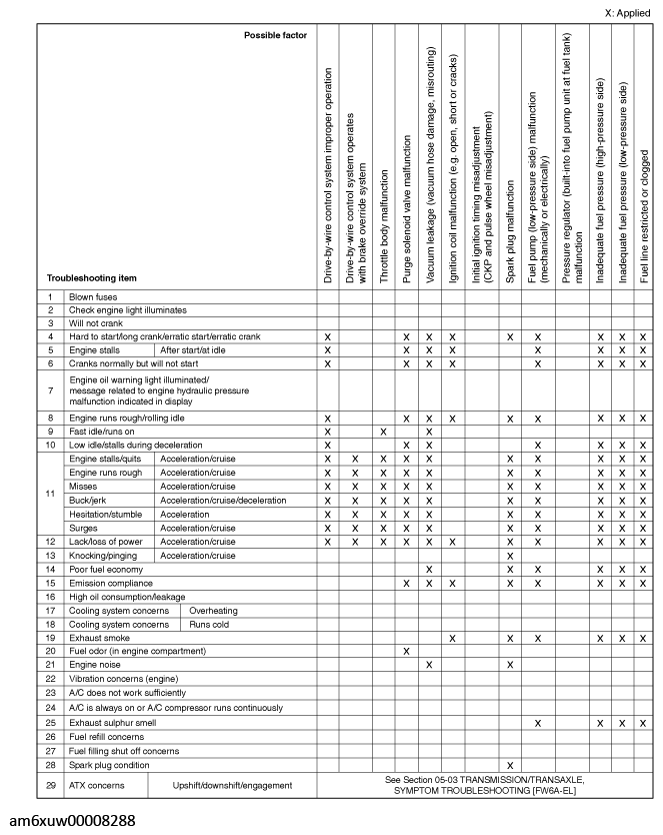

Fig 3: Quick Diagnostic Chart (3 Of 8)

G11545395

Courtesy of MAZDA MOTORS CORP.

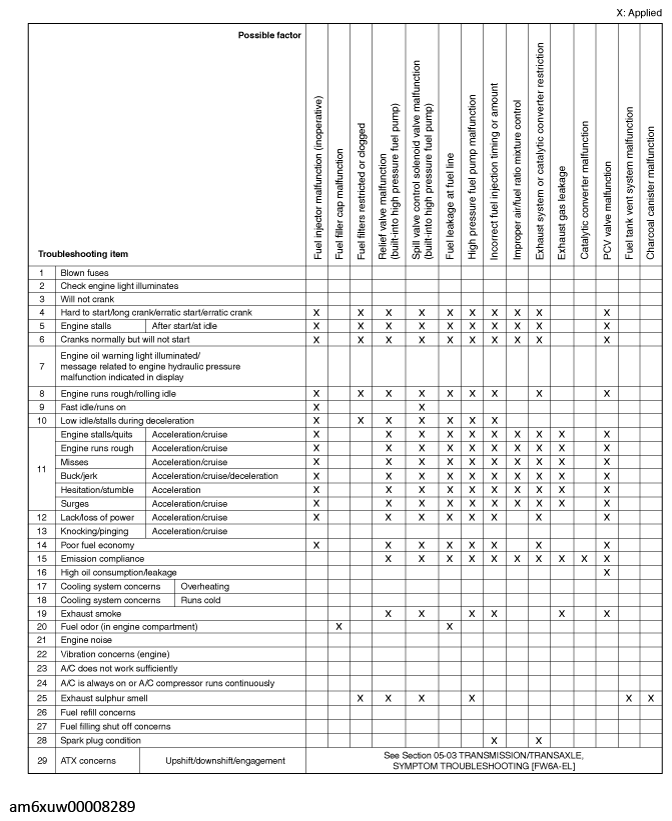

Fig 4: Quick Diagnostic Chart (4 Of 8)

G11545397

Courtesy of MAZDA MOTORS CORP.

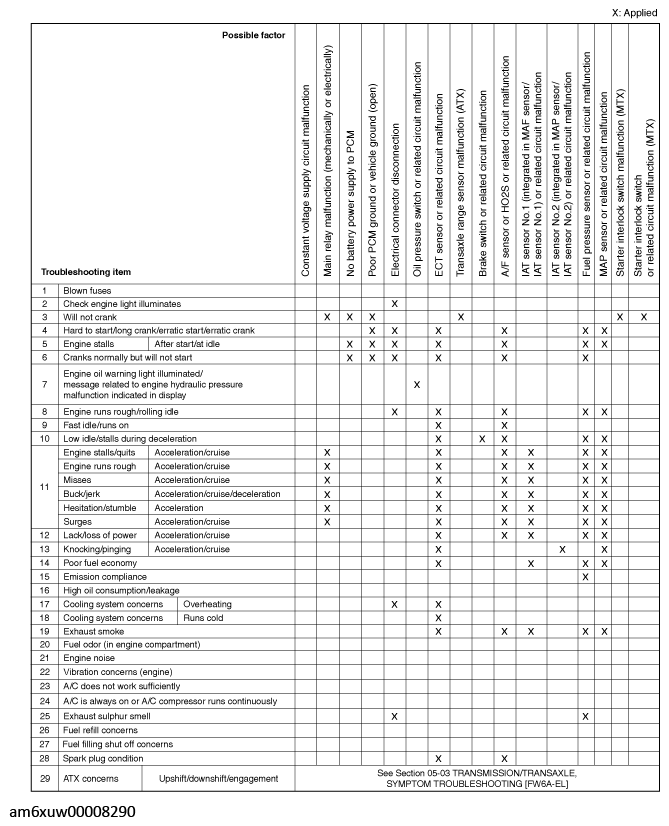

Fig 5: Quick Diagnostic Chart (5 Of 8)

G11545398

Courtesy of MAZDA MOTORS CORP.

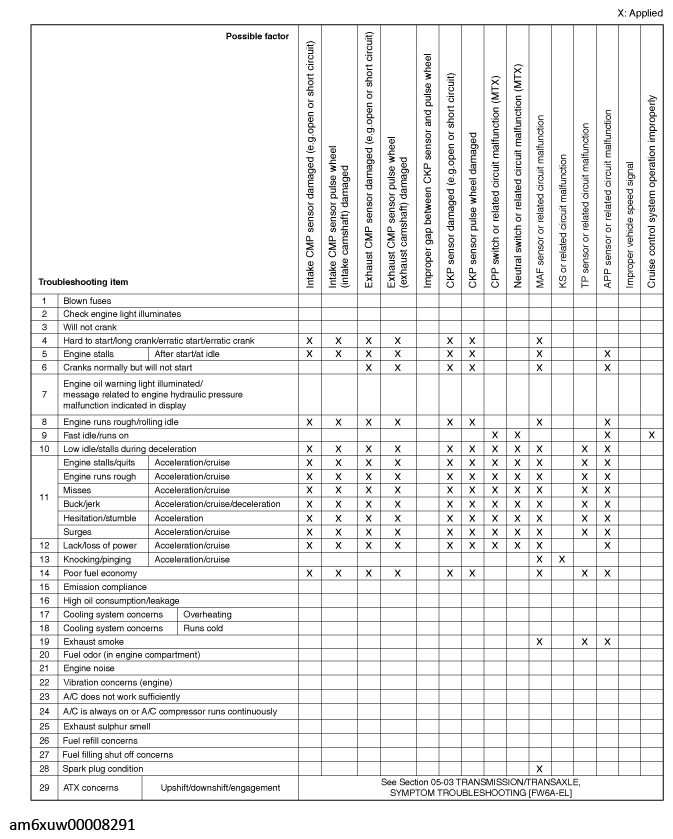

Fig 6: Quick Diagnostic Chart (6 Of 8)

G11545399

Courtesy of MAZDA MOTORS CORP.

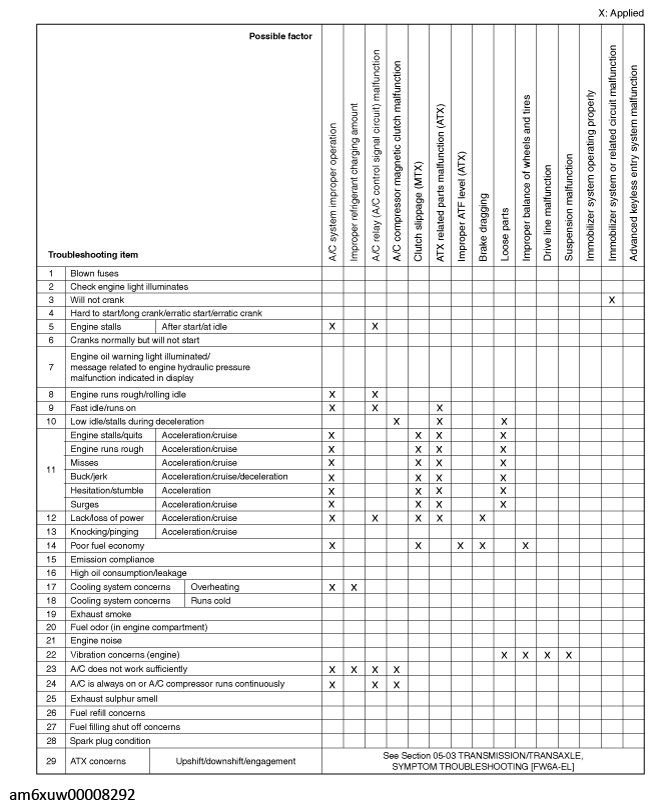

Fig 7: Quick Diagnostic Chart (7 Of 8)

G11545400

Courtesy of MAZDA MOTORS CORP.

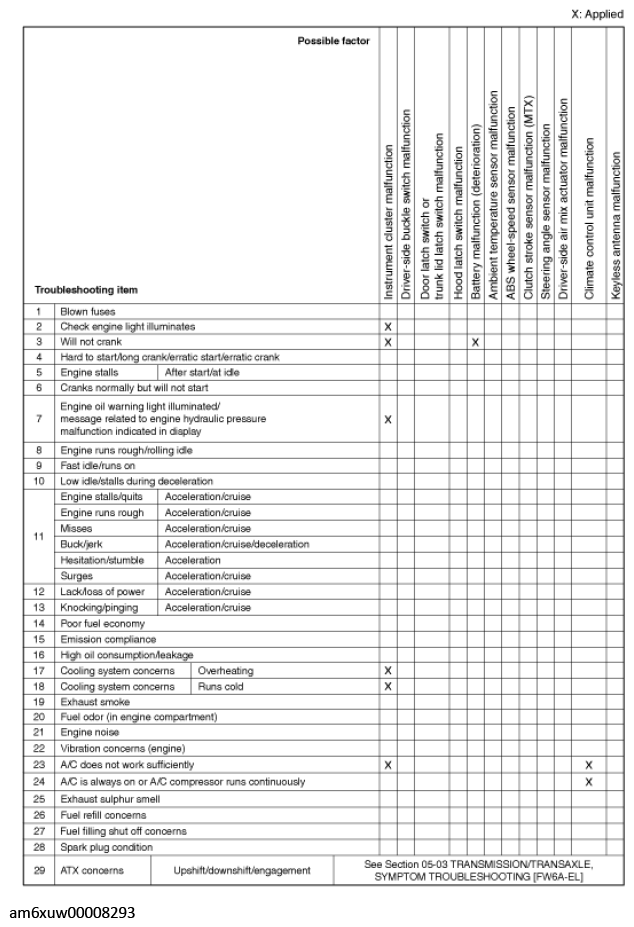

Fig 8: Quick Diagnostic Chart (8 Of 8)

G11545401

Courtesy of MAZDA MOTORS CORP.
