Cargo Compartment Light Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
    CAUTION:
    • When inserting the remover tool in the gap between the cargo compartment light and the trunk side upper trim, the remover tool could interfere with the trunk side upper trim and scratch or damage it. When removing the cargo compartment light from the trunk side upper trim, apply protective tape to the trunk side upper trim.

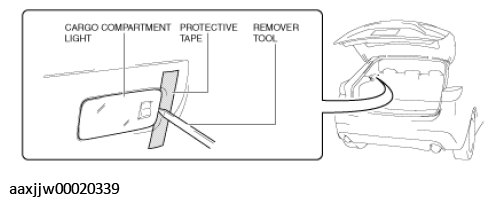

  2. To prevent scratches or damage, apply protective tape to the position shown in the figure.
    Fig 1: Locating Cargo Compartment Light
    G11449468Courtesy of MAZDA MOTORS CORP.
  3. Insert the remover tool into the gap between the cargo compartment light and the trunk side upper trim.
  4. Move the remover tool in the direction of arrow (1) shown in the figure and pull out the tab of the cargo compartment light from the trunk side upper trim.
    Fig 2: Locating Cargo Compartment Light
    G11449469Courtesy of MAZDA MOTORS CORP.
  5. Move the cargo compartment light in the direction of arrow (2) shown in the figure and pull out the cargo compartment light from the trunk side upper trim.
  6. Disconnect the connector.
    Fig 3: Locating Cargo Compartment Light Connector
    G11449470Courtesy of MAZDA MOTORS CORP.
  7. Remove the cargo compartment light.
  8. Install in the reverse order of removal.
