Short Cord Removal Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

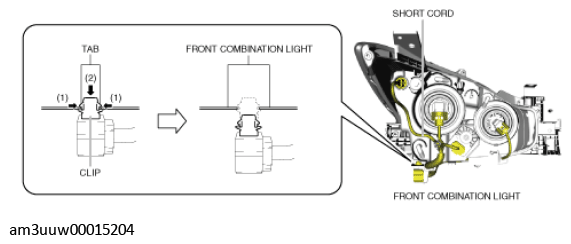

  1. While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the front combination light.
    Fig 1: Locating Front Combination Light
    G11449473Courtesy of MAZDA MOTORS CORP.
  2. Pull the clip out of the front combination light and remove the short cord.

Cover Installation Note

CAUTION:
  • If there is a gap between the housing and the cover, water may penetrate through the gap, causing a front combination light malfunction. Verify that there is no gap between the cover and the housing.
  1. Install the cover to the housing so that there is no gap between the housing and the cover.
    Fig 2: Front Combination Light Housing And Cover
    G11449474Courtesy of MAZDA MOTORS CORP.
