Sedan (4SD): Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
Disconnect the connectors.

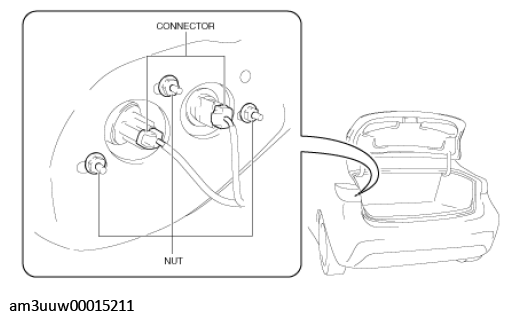

Fig 1: Rear Combination Light Connector Location
Courtesy of MAZDA MOTORS CORP.
Remove the nuts. (See NUT INSTALLATION NOTE .)
CAUTION:
- When removing the rear combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the rear combination light from the body, apply protective tape to the body.
To prevent scratches or damage, affix protective tape to the position shown in the figure.

Fig 2: Locating Rear Combination Light Protective Tape
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When removing the rear combination light from the body, the grommet could fall off and become lost. When removing the rear combination light from the body, verify that the grommet remains in the body.
Remove the rear combination light in the direction of the arrow shown in the figure.

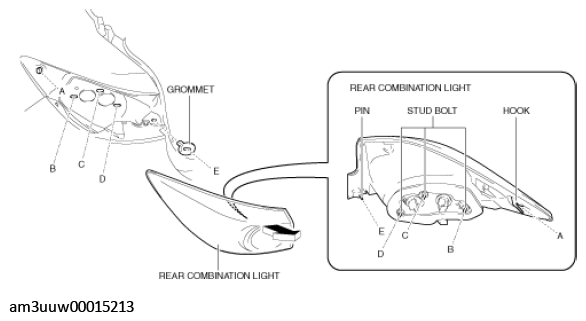

Fig 3: Removing Grommet From Rear Combination Light
Courtesy of MAZDA MOTORS CORP.
Remove the grommet. (See GROMMET INSTALLATION NOTE .)
Install in the reverse order of removal.
